Produts Description

Ag-Cu-P brazing alloy is adding Ag to Phosphorus copper alloy, reduced the melting point of fillermetal and improved filler metals plasticity, strength, toughness and wettability to copper. The heating time should be as shorten aspossible when brazing. The joints may be brighgrey and can be restored to copper color afterpickling by soaking in 5%-10% dilute sulfuricacid.

Application Areas

It can be used for brazing copper alloy of the same or different metails, its joint with high strength, good toughness, can replace somehigh siler material.

Product Form

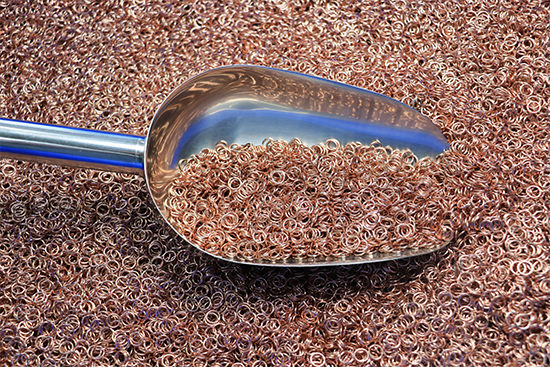

Flux-cored rod, flux-cored welding ring, powder, granule, conventional welding wire, welding rod, welding ring, welding stripflat bar, special shaped ring, etc.

Product List

American Standard Model Chemical
Composition		 Melting Temp.°C Recommended brazing temp. °C Shear Strength N/mm²  Application
BCuP-5 15 silver phosphorus copper Cu80P5Ag15 645-802 850 188 Brazing medium seam copper alloy, with good fluidity.
BCuP-3 5 silver phosphorus copper Cu89P6Ag5 643-843 900 180 Brazing large seam copper alloy joints with vibration.
BCuP-4 6 silver phosphorus copper Cu87P7Ag6 645-725 780 ref. BCuP-3 Brazing small seam joints, spectacle frames, etc., and is suitable for resistance welding.
BCuP-6 2 silver phosphorus copper Cu91P7Ag2  643-778 810 190 Suitable for medium seam, used for joint brazing of refrigerators, air conditioners copper and copper alloys.
